Specialist in Optoelectronics

LED-34

Typical Specifications

Peak wavelength 3.35 ± 0.05 micron
Typical output Power at 500mA 500 microWatt
FWHM 0.4 - 0.5 micron
Operating conditions 10°C to 45°C
Test conditions pulsed mode, 5 microsecond at 500Hz, 22°C
Package TO-18

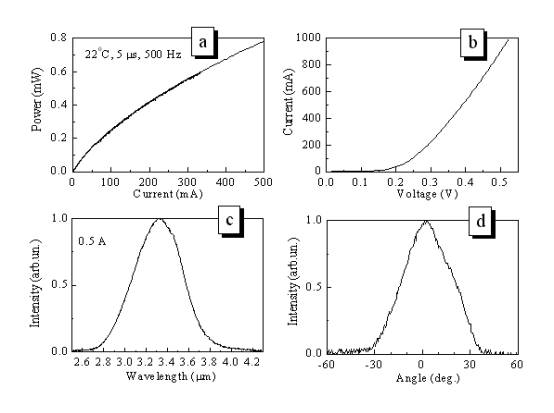

LED-34 data

a) LED's output intensity Vs drive current (pulsed mode, 5ms at 500Hz).
b) I-V Characteristics (forward bias)
c) Output Intensity Vs Wavelength
d) Output Intensity Vs Angle (deg.) F.O.V.
