LED-42

Typical Specifications

Peak wavelength 4.25 ± 0.05 micron
Typical output Power at 1000mA 100 microWatt
FWHM 0.4 - 0.5 micron
Operating conditions 10°C to 45°C
Test conditions pulsed mode, 5 microsecond at 500Hz, 22°C
Package TO-18

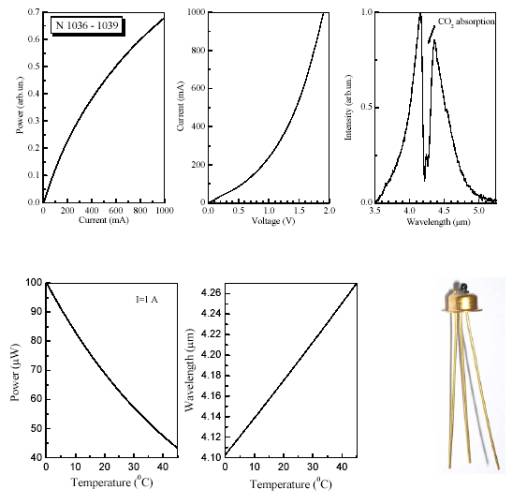

a) LED's output intensity Vs drive current (pulsed mode, 5microsecond at 500Hz).
b) I-V Characteristics (forward bias)
c) Output Intensity Vs Wavelength
d) Output Intensity Vs Temperature
e) Peak Wavelength Vs Temperature
f) TO-18 package
