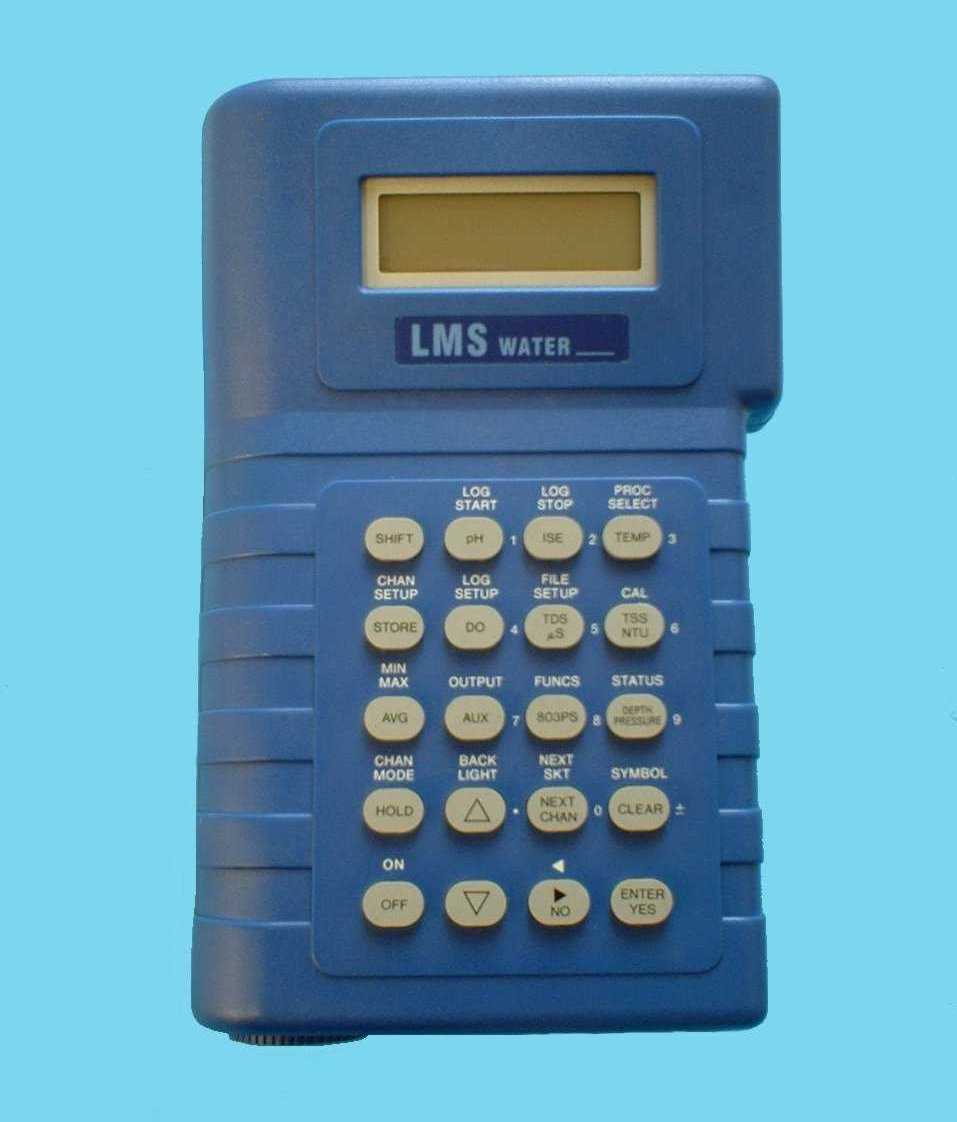

The WP4007 Chemistry and Water Quality Monitor

The WP4007 is a portable, self-contained instrument that can be used in conjunction with suitable electrodes, to measure and datalog a wide range of water quality parameters.
The WP4007 accepts the input from the 803PS multi-parameter Sonde as well as from individual electrodes.

{short description of image}
Features
Up to 32 channels are available to monitor water quality parameters (for example, pH conductivity, temperature, dissolved oxygen, ion concentration or turbidity) and these measurements can be displayed by stepping manually through a selection of electrodes connected to the WP4007 or scanned, either at regular time intervals or by using event triggered signals.
User control is provided by a 20-key keypad, or computor controled when used with the dedicated CS6 soiftware.

Multifunction
Parameters that can be measured by the WP4007 are determined by the probes and electrodes that are available and LMS water manufacture/ supply a wide range of these probes for use with the WP4007. With a choice of measuring pH, dissolved oxygen, conductivity/salinity/TDS, turbidity/TSS, temperature, flow, ion concentration and depth in one versatile unit. This will reduce the number of instruments needed for general laboratory and feild applications.
OEM probes can also be used with the WP4007 provided they have a compatible specification.

Easy to operate
The WP4007 is water proof to IP67 and easy to operate with the minimum of keystrokes needed to perform each function. At switch on, the instrument performs a self-test to ensure it is operating correctly. Simply connect your chosen electrode, select the parameter and measurements units via the keypad and the instrument is ready for operation.

Clear digital display
The LCD displays measured parameters, in a range of engineering units, simultaneously with temperature, battery status, calibration points; minimum, maximum and average readings are also shown. Dissolved oxygen is displayed as %saturation, mg/l or ppm; conductivity as l S, mS, ppm or ppt; turbidity as NTU or mg/l; temperature as ) C or ) F; flow as m/sec or ft/min and selective ions as ppm, ppt or mV. Units are selected on the keypad. Battery voltage can also be checked and a low battery condition is indicated automatically.

Calibration
Keypad operation with pre-set calibration points makes calibration easy and reliable. The pre-set calibration points can be changed if required.

Rugged and portable
The WP4007 datalogger has a rugged ABS case which is waterproof to IP67, and is capable of reliable operation over the temperature range -10°C to +55°C.

Power source
The WP4007 is powered by three C size (LR14) alkaline batteries or a NiMH rechargeable pack. An external A.C. adaptor (AA3) or D.C. supply (6 to 10V) can be used. To conserve battery life the WP4007 will optionally power down after 10 minutes if no action has occured.

Outputs
An RS232 digital output means you can send your data to a PC for further analyses.
Analogue outputs are available via the MX8000 multiplex unit.
A single alarm output is available from the WP4007 data logger or multi alarm output via the MX8000.

Wide choice of electrodes
A wide choice of compatible electrodes means you can tailor the WP4007 to your specific needs, allowing you to extend the scope of your instrument to meet your new requirements.






Specifications

PH/ORP
PH mV
Range/ Resolution 0.00 to 14.00 pH ± 800mV (abs)
Accuracy (25°C) 0.01 pH 0.1 mV or 0.05 % rdg
Tempco 0.003 pH/°C 0.05 mV/°C
Conductivity/ Salinity/ TDS
0.1K 1.0K
Electrode 1101US 1103US
Range/ Resolution
Low 0.1 to 200.00 µS/cm 1.0 to 2000.0 µS/cm
5.0 to 10000 KOhm 0.5 to 1000.0 KOhm
High 0.050 to 10.000mS/cm 0.50 to 100.00mS/cm
0.100 to 20.000KOhm 0.010 to 2.000KOhm
0 to 1000 ppm 0.30 to 60.00 ppt (15°C reference)
Accuracy (25°C)
Low ±1% rdg ± 0.1 µS ±1% rdg ± 0.5 µS
High ±1% rdg ± 0.005 mS ±1% rdg ± 0.05 mS
±5ppm
±0.3ppt
0.01K and 10K cells Also available
Flow
Range/ Resolution
Low
High
0.03 to 1.0 m/s
0.1 to 7.9 m/sec
Accuracy ±3% rdg
Dissolved Oxygen
Range/ Resolution 0.00 to 20.00ppm or mg/l, 0.0% to 200.0% Saturation
Accuracy (at T cal) ±0.2ppm or mg/l, ±2% Saturation
Temp. Compensated Accuracy ±0.3ppm, ±3% saturation (±10°C from T cal)
Temperature Range -8°C to 45°C
Compensation Keypad entry of salinity and barometric pressure
Ion Selective Electrodes (ISE)
Range/ Resolution 0.01 to 200.00ppm, 0.1 to 2000.0ppm
0.01 to 200.00ppt (keypad selectable)
Conformity ±2% of reading (maximum)
Accuracy Depends on ISE type
Turbidity/ TSS
Probe 1110TU
Range/ Resolution
Low
High
0.2 to 100.0 NTU, 0.5 to 250 mg/l (silica)
50 to 4000 NTU, 125 to 10000 mg/l (silica)
Accuracy
Low
High
±3%rdg, ±0.2 NTU
±3%rdg, ±20 NTU
Temperature range 0°C to 40°C
Temperature
Sensor Platinum RTD (Pt100) DIN 43760, BS1904
Range/ Resolution -100°C to +800.0°C
0.0 to 50°C (Sonde)
Accuracy ±0.15°C or ± 0.05%rdg (plus Pt100 error)
Conformity ±0.05°C
Power Source Dry cell alkaline (3 x C cell, L14) or NiMH rechargeable batteries
Battery Life
Alkaline 150 hours at 20°C, NiMH (2Ah version): 60 hours at 20°C, depending on type of electrode
External Power 6 - 10 V dc or ac via adaptor.
Outputs RS232 digital
Analogue via MX8000 multiplex unit.
Datalogging 50,000 readings.
Operating Conditions -10°C to +55°C; 0 to 100% RH
Storage Conditions -20°C to +60°C; 0 to 100% RH
Case High impact strength moulded ABS case, sealed to IP67 submersible to 1m.
Dimensions 233mm x150mm x70mm
Weight 1.2Kg
